SIP in IMS

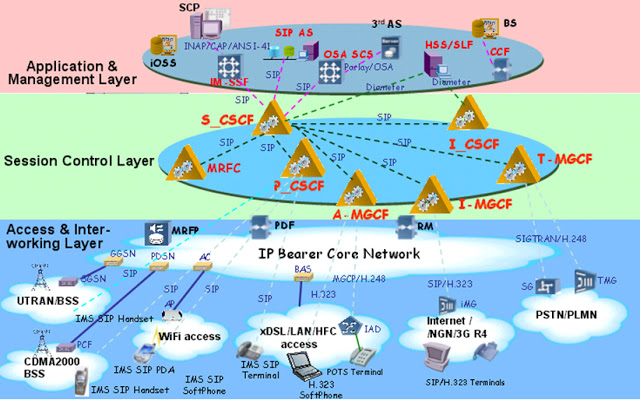

A diagrammatic layout of the nodes , interwokring among them and involvment of SIP in the different planes of  IMS architecture .

SIP Application in IMS

Telecommunications convergence

First, the mobile phone network enabled universal, affordable, personal communication, regardless of your location.

Then in the second wave of the communication revolution, the smartphone redefined all aspects of the way we communicate with people, businesses, information and entertainment access whilst on the move. As bandwidth has increased, so has the proliferation of VoIP systems.

From the user’s perspective, modern mobile devices deliver the converged, multi-media communication and entertainment experience.

VOIP

VOIP , short for Voice over IP , is called so beacuse it not only converts your voice calls in analog voice into digital packets but also channels voice data through IP networks such as LAN , WAN , Internet etc using the Internet Protocol (IP) .

  • VOIP system on LAN ( Local Area Network ) can use it as its backbone system to establish communication between endpoints . For example : Office communication system within the same enterprise/building  .
  • Similarity  VOIP over WAN ( Wide Area Network ) use the help  of IP PBX and VoIP service provider to enable communication across Internet . For example : OTT providers and internet calls .
  • By using the services of telecom providers in support with above plan it is also possible to land a VOIP call onto a real phone over GSM / PSTN via gateways .



As you opt for a IP telephony system , number of factors come into picture such as :

  1. Bandwidth
    Low bandwidth has always been a big concern for IP calls . While a LAN connection ensures good experience , calls over internet or VOIP PBX are not necessarily as neat. Network switching between different Internet service providers is factor.
  2. Inter-operability
    connecting remote works / employees to the VOIP network requires interoperablity between their hand held device like android , ios , tablets , smart watch or other types od communication devices such as hardphone, desktop-systems , kiosk , surveillance cams etc
  3. Traffic
    max simultaneous call ie peak traffic rate can create bottlenecks in comm channel or worse still result in high bandwidth usage . for example as p2p conf call between 5 parties will create a mesh network between each participant resulting in 4 outgoing and 4 incoming channels .
  4. QoS (Quality of service )
    call drops , prioritize important calls
    Security
    preventing the attacks and hacks , keeping information secure by encryption end to end ,
  5. AAA
    managing Authentication , Authorization and accounting
  6. Reuse existing Hardware
    replacing old hardware or installing softphone apps on mobiles etc .
  7. Scaling
    Will the comm system grow as your business grows ?
    If yes then how easy will it be to accommodate new users , office location , remote centers etc ?
  8. Codecs
    Under low bandwidth condition it is a good idea to switch to low resolution ( in case of video ) and low bandwidth codec ( in case of audio ) .

Some of the positive aspects of using VOIP are :

  1. ROI
    Return of investment is a big factor for SME before making the switch to IP telephony inplace of traditional established system like landline phone and cables. However it is for a fact that once the VOIP comm system is setup , it most certainly reduces call costs by 70%.
  2. Third party Interations
    It is often a necessaity to integrate communication system with CRM ( content realationship management ) systems or Sales management systems . Since most web portals are on IP , VOIP fits very well, with the click to call on webpage itself .
  3. VAS
    Value Added Services , refer to services such as IVR , call recoring , find-me-follo-me , voicemail , re-routing , called ID etc . In short it can add intelligence to the way calls are managed .

Hosting the PBX

Unified communication Solutions as SaaS or IaaS refer to on-premise or cloud-hosted IP PBX Solutions. Comparison of both is as follows

On -premise Cloud Based
The solution is usually of the SaaS nature ( software as a service ) which is hosted by the consumer / business unit itself . The service provider offers his infrastructure to the consumer as a service and bills monthly / yearly etc .
Hosting the solution system on premise and setting up the infrastructure means more customization and flexibility but it also means more investment and maintenance . On the other hand hosting the solution on cloud is often a quick setup with relatively lower upfront payment. The billing is either carried out per per user basis or based on consumption . The data is synced to cloud servers for storage and can be fetched from there when required such as cloud synced Call-logs or contact-book .

Convergence Vision

We already know some of the latest trends of industry with respect to telecom convergence such as :

FMC

Fixed Mobile Convergence (FMC) stands for integrating user’s fixed desk phone with his mobile phone. Call continuity is a VAS( Value added service ) which lets him to switch calls between different call devices even softphones , mid call also. It has multi-faced advantages such as not missing any call on account of being out of office , having the same call preferences on each device such as blocked numbers , IVR settings etc .

UC

Unified Communication refers to the accessibility of all communication and collaboration services from the users call agent ( phone / soft-phone ) . These services can include file transfer , chat , conference , call settings , blocking , white-listing , fax , cloud sync , call logs , called ID , favorites , recording .
Read more about Unified communication and collaboration here .

BYOD
Bring your own device is one of the hottest trends in industry almost across all domains where user is expected or is given to option to bring his personal laptop for official use . It is the responsibility of enterprise comm system to seamlessly integrate it with in-office communication system and provide the same privileges and security to business critical applications as preset in configuration settings .
It increases the flexibility and productivity while keeping the infrastructure cost down.

IMS provided Network Interoperability and Access Independence

ims-access-network-independence

IMS based tele-coommunication convergence described in figure below

  • clients get direct connectivity to IP PBX in offices or hotels
  • home users connect through cable wires or Wifi/WiMax
  • non SIP based legacy endpoints connect via signalling and media gateways

The access endpoints connecte to a single managed core IP network which intercoonectes with IMS core . The back end system not only manages calls and sessions but also registration  ,  billing , operations and adminstartion.

IMS convergence vision

picture courtesy – unknowni

 Intelligent Network   —>    Next Generation IMS System

The signalling protocols migration like from signalling system 7 (SS7) to session initial protocol (SIP) have been taking place in Telco-Industry. Similarly nodes of legacy network like signal transfer point (STP) of legacy network are being migrated to call session control function (CSCF) of IMS  that allows the rapid development and deployment of enhanced, revenue-generating multimedia services for fixed, mobile and cable operators.

IMS architecture enables operators to seamlessly run a plethora of next-generation converged services over their fixed, mobile and cable networks, achieve a faster time-to-market for new services and have fewer performance bottlenecks.

converged telecommunications

Business benefits of IMS

  1. Delivering Services: Delivering services and applications on a “wherever, however, whenever” basis.
  2. Multimedia services: Enabling service providers to offer multimedia services across both next-gen, packet-switched networks and traditional circuit-switched networks.
  3. Protocol stack: IMS architecture provides pipes and protocols onto which service providers can attach no. of applications very conveniently.
  4. Open Source standard: IMS architecture is based on open standard which makes it possible for different vendors of hardware and software to integrate with each other seamlessly.

As a subscriber, one of the main benefits of the IMS architecture is the capacity of the network to deliver the same set of services whatever the access network used.

convergence

This is made possible thanks to the centralization of the service execution process. A specific call server of the control plan (called Serving Call Session Control Function, S-CSCF) is responsible for invoking the application servers based on criteria provisioned in the central database. The S-CSCF gets these criteria (called Initial Filter Criteria) during the user’s registration in the IMS network.

Circuit Switched Voice –> Packet based VOIP

Voice over IP revolutionized in the Telecommunication space.It also makes your communication experience much richer and nicer with a series of enhanced features and extended possibilities. The no. of user migrating from traditional circuit switched network to IP has been quite substantial in recent years. CSP are embracing VOIP technology as a potential revenue generator and investing huge chunk of money to create value propositions for themselves in VOIP.




Conclusion

In conclusion here are the top business benefits of adopting a converged and unified IP telephony solution such as IMS and SIP are

Cost Savings:
Saving money is the number-one reason most businesses and households make the switch to a VoIP system, VoIP systems don’t require a phone cabinet or on-site routing equipment- just phones.

Features:
VoIP also allows users to take advantage of advanced features only available on internet-based phone systems. Features like online call monitoring, and online phone system access to add or configure extensions are also available with VoIP systems.

Flexibility:
VoIP allows people to go mobile and call directly from their cell phone and be charged at low VoIP rates

Tracking Options:
Since VoIP is an internet-based system, user can track and manage their system from their computer. Most VoIP systems allow user to track call volume and call time fairly easily- a feature that can be especially helpful for businesses that bill clients hourly or for time spent on the phone.
